AC Contactors 3 Poles 4 Poles

AC Contactors 3 Poles 4 Poles

Brand:Winntrium/OEM
Electric ratings: AC50/60Hz, 690v, up to 95A;
Standard: lEC/EN 60947-4-1.
Ambient temperature: -5℃~+40℃;

 EMAIL

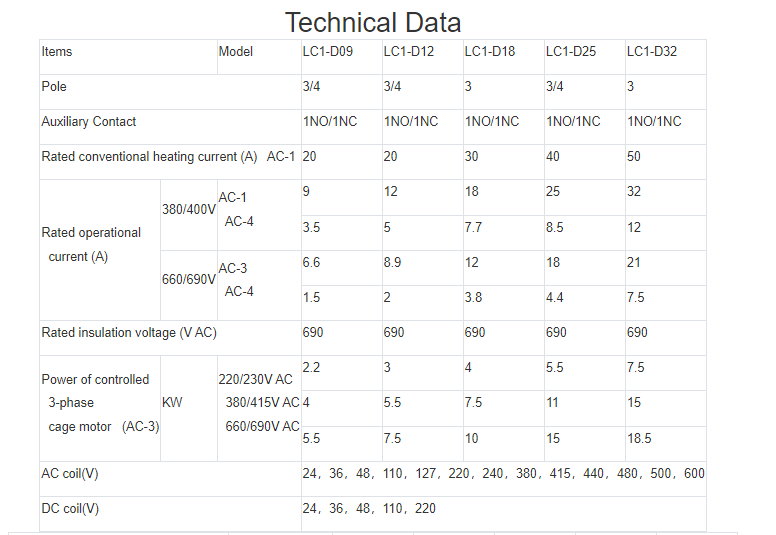

Description of AC Contactors


WTC1 serious ac contactors are suitable for using in circuit of frequency 50/60Hz, rated insulation voltage up to 1000v, rated operation current 9-95A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance for frequent starting/stopping&controlling AC motors. It is used in combination with a thermal relay to compose of a magnatic starter. It is in conformity with the standards of IEC60947.4.1 and GB14048.4.

  • 1.1 Certificates: CE;

  • 1.2 Electric ratings: AC50/60Hz, 690v, up to 95A;

  • 1.3 Application: remote making & breaking      circuits, protect circuit from over-load when assembling with thermal      over-load relay, frequent start-up and control of AC motor;

  • 1.4 Utilization category: AC-3,AC-4;

  • 1.5 Altitude:≤2000m;

  • 1.6 Ambient temperature: -5℃~+40℃;

  • 1.7 Mounting category: IlI;

  • 1.8 Mounting conditions: inclination between the      mounting plane and the vertical plane

  • should not exceed士5°;

  • 1.9 Standard: lEC/EN 60947-4-1.
