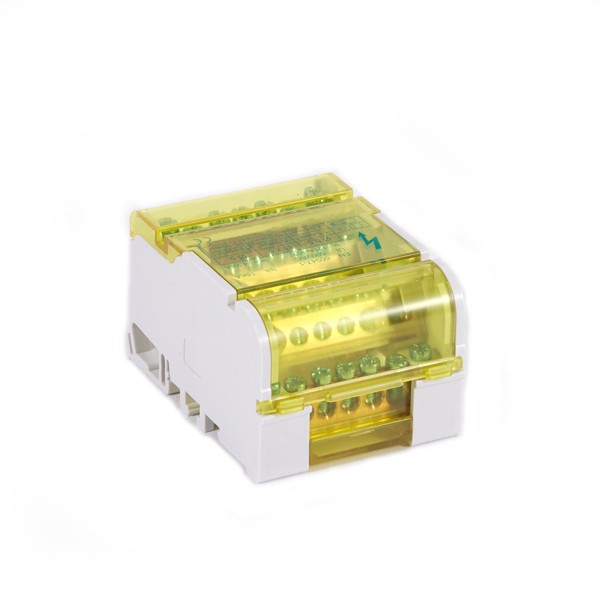

Modular distribution block 125AMP 4 Poles 7 connections

Standard: IEC60947-7-1
Compact design
CE marked and RoHs compliant
Poles:4 Poles 7 Connections
Terminal: Brass conductor
Cover material: PC
Base material: PA6


 Modular Distribution Blocks 125AMP

WTM03 range modular distribution blocks are designed for distribution equipment and switchgears; it is used as bus bar and current terminal in different electrical devices.It also offers a safe,convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits.It also offers DIN-Rail mount installation and an optional hinged safety cover. Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material. They also protect personnel from accidentally contacting energized connectors.For DIN rail or chassis mounting with screws.


Product   modelTerminal   rowsTerminals/rowL(MM)W(MM)H(MM)
WTM03 2X7276545.551
WTM03   2X1121513245.551
WTM03 4X7476589.550
WTM03   4X1141110089.550
WTM03   4X1541513289.550

                                                                           Standard: IEC60947-7-1

Terminal: Brass conductor

Frequency: 50 or 60 Hz

Rated insulation voltage Ui: 500V

Ipk: 20Ka  Ie: 125a,160a

Dielectric test voltage at ind. Freq. for 1 min: 2.5Kv

Pollution degree: 2

Cover material: PC

Base material: PA6

Glow wire test(IEC695-2-1)℃: 960
