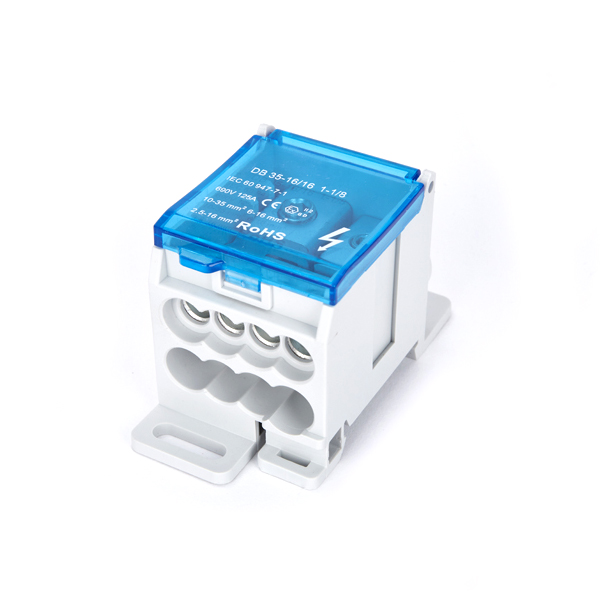

Model:WTUD80A
Max Current Rating, IEC:80 A
Load Side Max Conductor Size, IEC:16 mm²
Line Side Max Conductor Size, IEC:16mm²
Finish:Tinned
Terminal Block Features:
Space saving: compact
Tinned copper block: high conductivity
Visual inspection of wire: confirmation of connection
Hinged or removable cover: easy wiring
Clip-on DIN rail or mount to panel with screws: easy fixing
| Part Number | WTUD80A |
| Max Current Rating, IEC | 80 A |
| Max Current Rating, UL/CSA | 85 A |
| Finish | Tinned |
| Line Side Connection | Cable |
| Load Side Connection | 6 Cables |
| Material | Copper Thermoplastic |
| Line Side Max Conductor Size, IEC | 16 mm² |
| Load Side Max Conductor Size, IEC | 16 mm² |
| Max Working Voltage, IEC (Ui) | 1,000 VAC/DC |
| Max Working Voltage, UL (Vin) | 600 V |
| Short Term Withstand Current (Icw) 1s | 3 kA |
| Peak Short Circuit Current (Ipk) | 22 kA |
| Rated Conditional Short-Circuit Current (Icc) | 11 kA |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Line Side Number of Connections | 1 |
| Line Side Compact Stranded Wire Size | 6 - 16 mm² |
| Line Side Wire Size | #16 – #4 |
| Load Side Number of Connections | 6 |
| Load Side Compact Stranded Wire Size | (2) 2,5 - 16 mm² (4) 2,5 - 6 mm² |
| Load Side Stranded Wire Size - Ferrule | (2) 2,5 - 16 mm² (4) 2,5 - 6 mm² |
| Load Side Wire Size | (2) #16 - #4 (4) #16 - #8 |
| Enclosure Rating | IP 20 |
| Unit Weight | 0.07 kg |
| Flammability Rating | 94V-0 |
